700°F – 1200°F Series / Model No. ET-101
The 3- and 5-ton Extra High Temperature Wheel Assembly includes:
- 1 – Wheel
- 2 – Axle boxes, high-grade cast iron
- 1 – Die steel caged roller bearing
- 1 – Axle with lube fitting-C1045 cold rolled steel for 700°F operation and stainless steel for 1000°F and 1200°F operation
- Wheel diameters 10″ thru 20″ are available

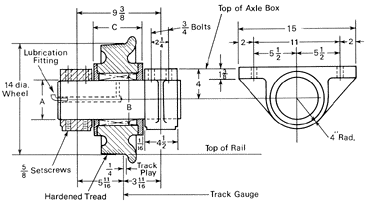

| Capacity | Axle Dia. A | Wheel Bore B | Distance Thru Wheel C | App. Assem. Weight |
|---|---|---|---|---|
| 3 ton | 3-3/8″ | 4-7/8″ | 4-3/4″ | 240 lbs. |
| 5 ton | 4′ | 5-1/2″ | 4-3/4″ | 255 lbs. |
700°F – 1200°F Series / Model No. ET-102
The 10- To 15-ton Extra High-Temperature Wheel Assembly includes:
- 1 – Wheel
- 2 – Axle boxes, high-grade cast iron
- 2 – Die steel caged roller bearings
- 1 – Axle with lube fittings-C1045 cold rolled steel for 700°F operation and stainless steel for 1000°F and 1200°F operation
- Load ratings are based on 50 RPM. RPM’s greater than 50 are available
- Operating temperature 700°F 1000°F -1200°F
- Wheel diameter availability: 10″ – 20″
- Units are completely assembled, painted, lubricated and ready for installation
| Capacity | Axle Dia. A | Wheel Bore B | Distance Thru Wheel C | D | E | F | App.Assem. Weight |
|---|---|---|---|---|---|---|---|
| 10 ton | 3-3/8″ | 4-7/8″ | 8-1/4″ | 7-11/16″ | 6-11/16″ | 14-3/8″ | 360 lbs. |
| 12 ton | 4″ | 5-1/2″ | 8-1/4″ | 7-11/16″ | 6-11/16″ | 14-3/8″ | 370 lbs. |
| 15 ton | 5′ | 6-7/8″ | 9-1/4″ | 8-3/16″ | 7-3/16″ | 15-3/8″ | 380 lbs. |
