High-Temp 550°F Series HT-101

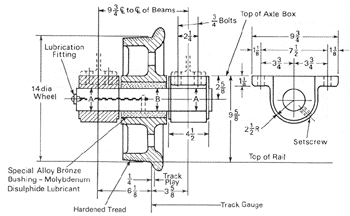

The Irwin 3- through 7 1/2-ton Stub Axle 550°F Wheel Assembly includes:

  • 1 – Wheel, 10″ – 24″ diameter steel 2-Axle boxes, high-grade cast iron
  • 1 – Special alloy bronze, high temperature bushing
  • 1 – Axle C1045 hot rolled steel with lube fitting
  • Load ratings are based on 50 RPM. RPM’s greater than 50 are available.
  • Operating temperature 550°F maximum.
  • Units are completely assembled, painted, lubricated and ready for installation.
Capacity Shaft Dia. A Shaft Dia. B App. Assem. Weight
3 ton 2-1/2″ 2-1/2″ 210 lbs.
5 ton 3″ 3″ 225 lbs.
7-1/2 ton 3″ 3-1/2″ 235 lbs.
Call us today at 724-864-8900 to discuss your application and need, or use the Contact and Quote Buttons at the top of this page.
