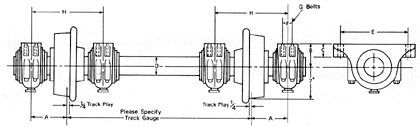

Model No. DA-101 Double Box Assembly

Sprocket location, by customer, required on drive axles.

  • Wheels – 10″ – 33″ diameter steel
  • Axle – C1045 cold rolled steel
  • Pillow Block – self-aligning with tapered roller bearings
  • Customized versions available upon request: extra-high capacity, high speed, shot blast duty, maintenance of way
Capacity A B C D E F G H WT.
10 ton 6-3/4″ 3-1/4″ 1-3/4″ 2-7/16″ 10″ 1-3/4″ 1/2″ 13″ 410
15 ton 6-3/4″ 3-3/4″ 2″ 2-15/16″ 11-1/4″ 1-7/8″ 5/8″ 13″ 565
24 ton 7-5/8″ 4-1/2″ 2-1/4″ 3-7/16″ 13-1/2″ 2″ 3/4″ 14-3/4″ 790
30 ton 7-5/8″ 5″ 2-3/4″ 3-15/16″ 14-1/2″ 2″ 3/4″ 14-3/4″ 1045
40 ton 7-5/8″ 5-3/4″ 3″ 4-7/16″ 16″ 2-1/4″ 3/4″ 14-3/4″ 1390
50 ton 8-5/8″ 6-1/4″ 3-1/4″ 4-15/16″ 17-3/4″ 2-1/2″ 7/8″ 16-1/2″ 1800

Model No. DA-102 Inside Box Assembly

Sprocket location, by customer, required on drive axles.

  • Wheels – 10″ – 33″ diameter steel
  • Axle – C1045 cold rolled steel
  • Pillow Block – self-aligning with tapered roller bearings
  • Customized versions available upon request: extra-high capacity, high speed, shot blast duty, maintenance of way
Capacity A B C D E F G WT.
4 ton 5-3/4″ 3-1/4″ 1-3/4″ 2-7/16″ 10″ 1-3/4″ 1/2″ 340
6 ton 5-3/4″ 3-3/4″ 2″ 2-15/16″ 11-1/4″ 1-7/8″ 5/8″ 465
10 ton 6-1/2″ 4-1/2″ 2-1/4″ 3-7/16″ 13-1/2″ 2″ 3/4″ 630
15 ton 6-1/2″ 5″ 2-3/4″ 3-15/16″ 14-1/2″ 2″ 3/4″ 785
20 ton 6-7/8″ 5-3/4″ 3″ 4-7/16″ 16″ 2-1/4″ 3/4″ 880
25 ton 7-1/8″ 6-1/4″ 3-1/4″ 4-15/16″ 17-3/4″ 2-1/2″ 7/8″ 1050
30 ton 7-1/8″ 6-11/16″ 2-3/4″ 5-1/2″ 18-1/4″ 3-3/4″ 1″ 1150
35 ton 8-1/4″ 7-1/16″ 2-7/8″ 6″ 20-1/2″ 4-1/4″ 1″ 1250
42 ton 8-1/2″ 7-1/2″ 3″ 6-1/2″ 22-1/4″ 4-5/8″ 1″ 1350
50 ton 8-3/4″ 7-7/8″ 3-1/8″ 7″ 23″ 4-1/2″ 1-1/4″ 1450

Model No. DA-103 Outside Box Assembly

Sprocket location, by customer, required on drive axles.

  • Wheels – 10″ – 33″ diameter steel
  • Axle – C1045 cold rolled steel
  • Pillow Block – self-aligning with tapered roller bearings
  • Customized versions available upon request: extra-high capacity, high speed, shot blast duty, maintenance of way
Capacity A B C D E F G WT.
4 ton 7-1/4″ 3-1/4″ 1-3/4″ 2-7/16″ 10″ 1-3/4″ 1/2″ 355
6 ton 7-1/4″ 3-3/4″ 2″ 2-15/16″ 11-1/4″ 1-7/8″ 5/8″ 490
10 ton 8-1/8″ 4-1/2″ 2-1/4″ 3-7/16″ 13-1/2″ 2″ 3/4″ 660
15 ton 8-1/8″ 5″ 2-3/4″ 3-15/16″ 14-1/2″ 2″ 3/4″ 830
20 ton 8-1/8″ 5-3/4″ 3″ 4-7/16″ 16″ 2-1/4″ 3/4″ 940
25 ton 8-1/8″ 6-1/4″ 3-1/4″ 4-15/16″ 17-3/4″ 2-1/2″ 7/8″ 1130
30 ton 8-7/8″ 6-11/16″ 2-3/4″ 5-1/2″ 18-1/4″ 3-3/4″ 1″ 1230
35 ton 9-1/4″ 7-1/16″ 2-7/8″ 6″ 20-1/2″ 4-1/4″ 1″ 1330
42 ton 9-1/2″ 7-1/2″ 3″ 6-1/2″ 22-1/4″ 4-5/8″ 1″ 1430
50 ton 9-3/4″ 7-7/8″ 3-1/8″ 7″ 23″ 4-1/2″ 1-1/4″ 1530
