Model No. TA-101

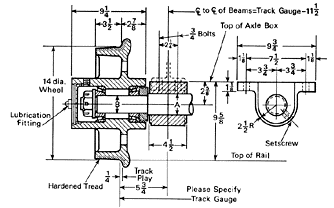

The 1- through 8-ton Inside Axle Box Thru Axle Wheel Assembly includes the following:

  • 2 – Wheels with lube fittings
  • 2 – Axle boxes-high-grade cast iron
  • 2 – Wheel sets of tapered roller bearings, including nuts and dust collars
  • 1 – Axle C1045 hot rolled steel. Models are available with steel wheels ranging from 10″ through 24″ diameters
Capacity Shaft Dia. A Shaft Dia. B WT.
1 ton/axle 1-5/8″ 1-3/8″ 335 lbs.
3 ton/axle 2-1/4″ 2″ 365 lbs.
6 ton/axle 2-3/4″ 2-1/2″ 400 lbs.
8 ton/axle 3″ 2-3/4″ 425 lbs.

Model No. TA-102

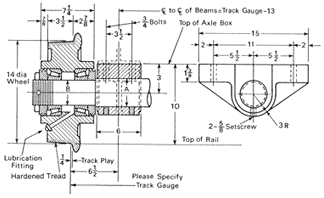

The 10- and 15-ton Inside Axle Box Thru Axle Wheel Assembly includes the following:

  • 2 – Wheels with lube fittings 1011 thru 2411 diameter are available
  • 2 – Axle boxes-high-grade cast iron
  • 2 – Wheel sets of tapered roller bearings including dust collars
  • 1 – Axle C1045 hot rolled steel
  • Load ratings are based on 50 RPM. RPM’s greater than 50 are available.
  • Operating temperature 300°F maximum.
  • Units are completely assembled, painted, lubricated and ready for installation.
Capacity Shaft Dia. A Shaft Dia. B WT.
10 ton 3-1/4″ 3′ 575 lbs.
15 ton 3-3/4″ 3-1/2″ 660 lbs.

Model No. TA-103

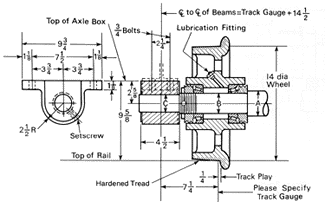

The 1- through 8-ton Outside Axle Box Thru Axle Wheel Assembly includes the following:

  • 2 – Wheels with lube fittings
  • 2 – Axle boxes, high-grade cast iron
  • 2 – Wheel sets of tapered roller bearings, including nuts and dust collars
  • 1 – Axle C1045 hot rolled steel. Models are available with steel wheels ranging from 10″ through 24″ diameters
Capacity Shaft Dia. A Shaft Dia. B Shaft Dia. C App. Assem. Weight
1 ton 1-5/8″ 1-3/8″ 1-1/4″ 340 lbs.
3 ton 2-1/4″ 2″ 1-3/4″ 375 lbs.
6 ton 2-3/4″ 2-1/2″ 2-1/4″ 415 lbs.
8 ton 3″ 2-3/4″ 2-1/2″ 445 lbs.

Model No. TA-104

The 10- and 15-ton Outside Axle Box Thru Axle Wheel Assembly includes the following:

  • 2 – Wheels with lube fittings 1011 thru 24″ available
  • 2 – Axle boxes, high-grade cast iron
  • 2 – Wheel sets of tapered roller bearings including dust collars
  • 1 – Axle C1045 hot rolled steel
  • Load ratings are based on 50 RPM. RPM’s greater than 50 are available.
  • Operating temperature 300°F maximum.
  • Units are completely assembled, painted, lubricated and ready for installation.
Capacity Shaft Dia. A Shaft Dia. B Shaft Dia. C App. Assem. Weight
10 ton 3-1/4″ 3′ 2-7/8″ 605 lbs.
15 ton 3-3/4″ 3-1/2″ 3-1/4″ 695 lbs.
